2026 Ram 1500 in Mobile, AL

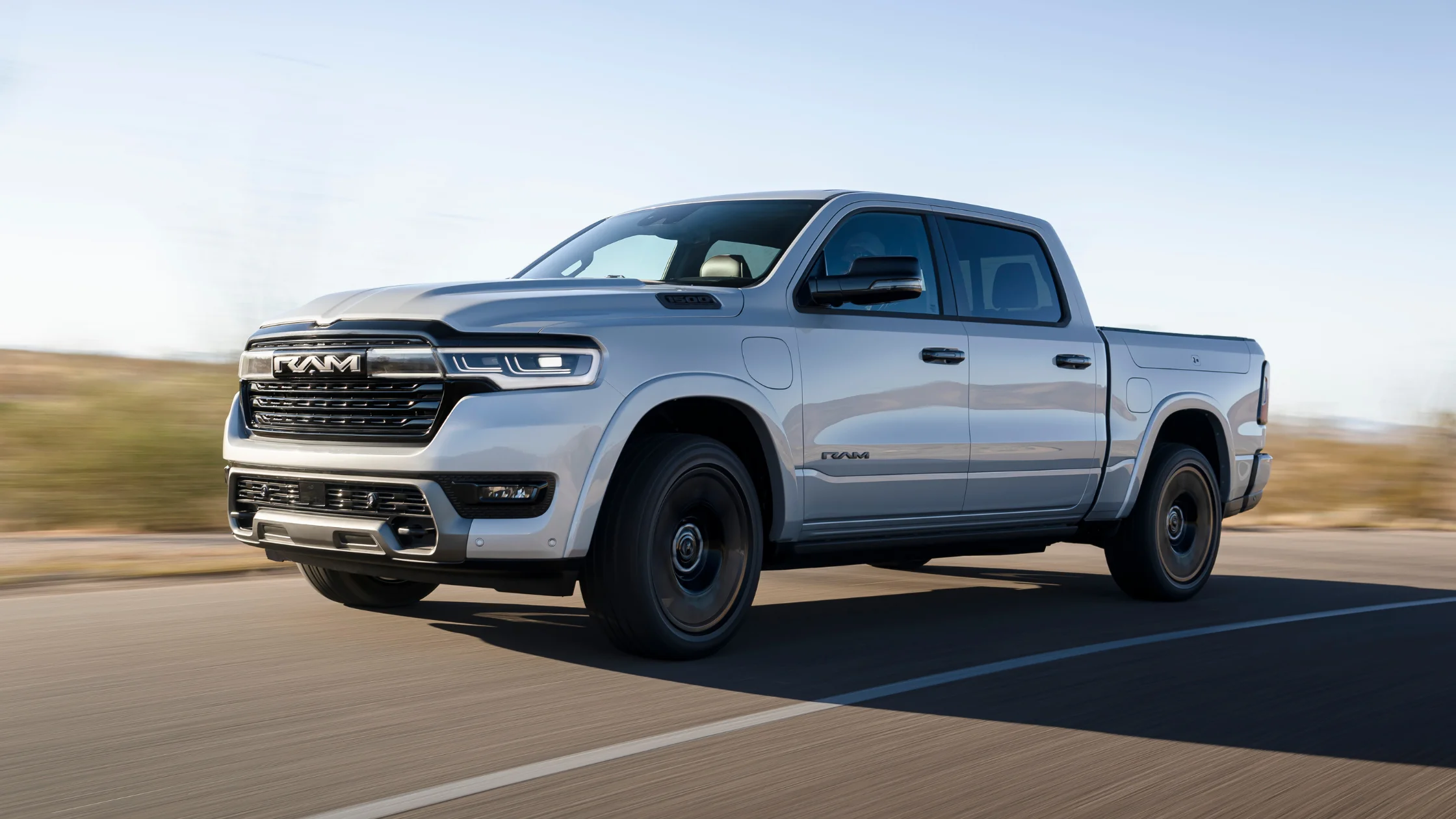

The 2026 Ram 1500 is engineered as a full-size pickup with multiple configurations that support varying operational requirements. It is available in Quad Cab and Crew Cab formats with both 4x2 and 4x4 drivetrains. The platform uses a longitudinal front-engine layout and a ladder-type frame constructed with a steel cab and double-wall steel pickup box. This construction supports structural rigidity and load management while maintaining consistent dimensional tolerances across configurations. The vehicle is assembled at the Sterling Heights Assembly Plant in Michigan and is classified as a standard pickup under EPA guidelines.

Engine Lineup and Output Specifications

The 2026 Ram 1500 offers four engine options, each designed with distinct performance characteristics and mechanical configurations.

The 3.6-liter Pentastar® V-6 with eTorque is a 60-degree gasoline engine equipped with variable valve timing and a chain-driven dual overhead camshaft system with 24 valves. It uses sequential multiport fuel injection and operates with a compression ratio of 11.3:1. This engine produces 305 horsepower at 6,500 rpm and 271 lb-ft of torque at 4,900 rpm. The integrated eTorque system includes a 48-volt lithium-ion battery with a 0.43 kWh capacity and a 9 kW belt-starter generator that delivers 90 lb-ft of launch torque. Fuel economy reaches up to 20 mpg city and 25 mpg highway in 2WD configurations.

The 3.0-liter straight-six turbocharged engine is an inline configuration with twin turbochargers and direct fuel injection. It generates 420 horsepower at 5,200 rpm and 469 lb-ft of torque at 3,500 rpm. The engine incorporates dual independent valve timing, hydroformed tubular camshafts, and 24 valves with sodium-filled exhaust valves. Fuel delivery operates at pressures up to 5,075 psi through a centrally located injector system. The engine uses a cast-aluminum block with plasma-coated cylinder bores and forged steel internal components. Fuel economy is rated at up to 25 mpg highway in 2WD models.

The 5.7-liter HEMI® V-8 with eTorque is a 90-degree gasoline engine with variable cam timing and hemispherical combustion chambers. It produces 395 horsepower at 5,600 rpm and 410 lb-ft of torque at 3,950 rpm. The engine integrates a 48-volt hybrid system with a 12 kW belt-starter generator delivering 130 lb-ft of launch torque. The design includes a cast-iron block with cross-bolted main bearing caps and aluminum alloy cylinder heads. This engine supports mid-grade fuel and maintains consistent torque delivery across operating ranges.

The 3.0-liter straight-six high-output engine is the highest-performing option in the lineup. It produces 540 horsepower at 5,700 rpm and 521 lb-ft of torque at 3,500 rpm. This twin-turbocharged engine uses forged pistons, forged steel connecting rods, and a forged crankshaft. It operates with a compression ratio of 9.5:1 and requires premium fuel. The engine includes dual cooling circuits for temperature management and a dual exhaust system with straight-through flow characteristics.

Disclaimer: Fuel economy - city (mpg) 18 / Fuel economy - highway (mpg) 25 / Fuel economy - combined (mpg) 21 / Recommended fuel Regular unleaded / Fuel tank (gal.) 26

Transmission Systems and Gear Ratios

The powertrain integrates two eight-speed automatic transmission systems depending on engine selection. The TorqueFlite 850RE transmission is paired with the 3.6-liter engine and features adaptive electronic control with manual Electronic Range Select capability. It uses a five-clutch-pack design with only two open clutches in any gear, which improves efficiency and reduces internal friction.

The TorqueFlite 8HP75 transmission is paired with the turbocharged and V-8 engines. It includes a four planetary gear set architecture and electronically modulated torque converter clutch. Both transmissions share similar gear ratios, including a 4.71 first gear ratio for initial acceleration and a 0.67 eighth gear ratio for highway efficiency. The reverse gear ratio is set at 3.30. Axle ratios include 3.21, 3.55, and 3.92, depending on configuration.

Transfer Case Systems and Drivetrain Control

The 2026 Ram 1500 offers multiple transfer case systems that support different driving conditions. The part-time BW 48-12 system provides selectable 2WD and 4WD modes with a low-range ratio of 2.64. The on-demand BW 48-11 system adds automatic torque distribution through a 4WD Auto mode while maintaining the same low-range ratio.

The full-time BW 48-13 system is available with the high-output engine and provides continuous torque distribution between the front and rear axles. The torque split varies based on selected driving modes, including wet or snow, towing, and off-road conditions. Ratios adjust from 40/60 in standard operation to 25/75 in performance-oriented settings. These systems allow the drivetrain to adapt to traction requirements without manual intervention.

Suspension Geometry and Ride Control

The front suspension uses upper and lower A-arms with coil springs, twin-tube shock absorbers, and a stabilizer bar. Rear suspension is a five-link system with a solid axle, track bar, and coil springs. This configuration supports load distribution and maintains axle alignment under varying conditions.

Certain trims include Bilstein e2 Blackhawk active performance shock absorbers, which adjust damping characteristics based on driving inputs. These components enhance stability during acceleration, braking, and cornering.

Air suspension is available and provides multiple ride height settings. Entry and exit mode reduces ride height for accessibility, while normal ride height maintains standard ground clearance. Off-road modes increase ground clearance up to 10.7 inches, improving approach, departure, and breakover angles. Approach angles can reach up to 31 degrees, while departure angles exceed 25 degrees in specific configurations.

Brake System and Steering Integration

The braking system includes vented front disc brakes measuring up to 15 inches in diameter with two-piston calipers. Rear brakes measure up to 14.8 inches with single-piston calipers. The system includes anti-lock braking functionality and dual-rate vacuum power assist.

Electric power steering provides consistent steering response across different speeds. The system adjusts assist levels based on driving conditions, ensuring controlled handling and reduced steering effort during low-speed maneuvers.

Exterior Dimensions and Cargo Capacity

The 2026 Ram 1500 is available with multiple body configurations that affect overall dimensions and cargo capacity. Quad Cab models with a 6-foot 4-inch bed measure 228.4 inches in overall length, while Crew Cab models extend up to 241.3 inches with the same bed length. Width remains consistent at approximately 81.2 inches across configurations.

Cargo box volume ranges from 53.8 cubic feet in shorter bed configurations to 61.3 cubic feet in longer bed configurations. Cargo width measures 66.4 inches, with 51 inches between wheelhouses. Depth is approximately 21.4 inches, allowing for consistent load handling.

Fuel tank capacity includes a standard 26-gallon tank with an available 33-gallon option, increasing driving range for extended use.

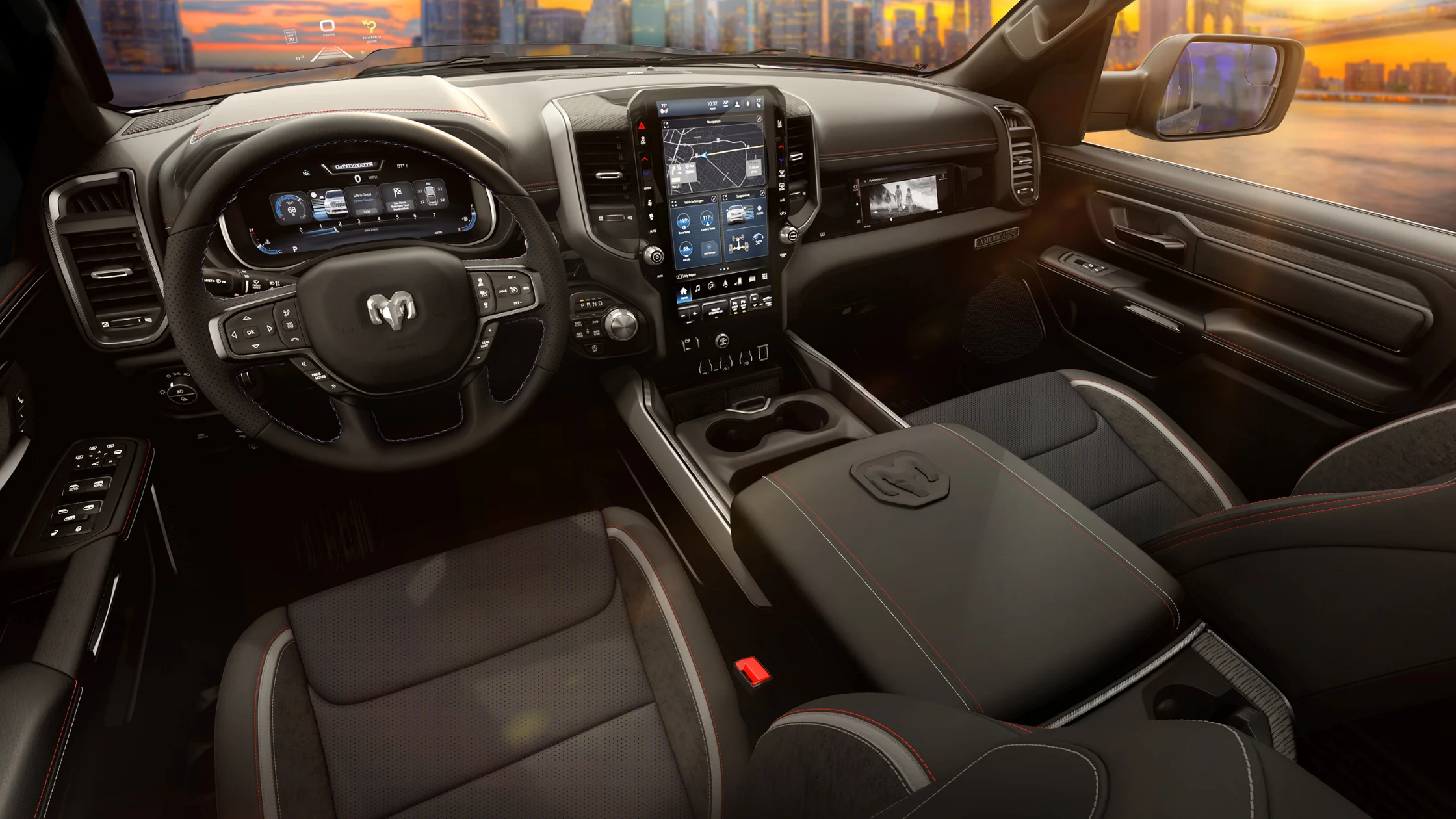

Interior Dimensions and Passenger Space

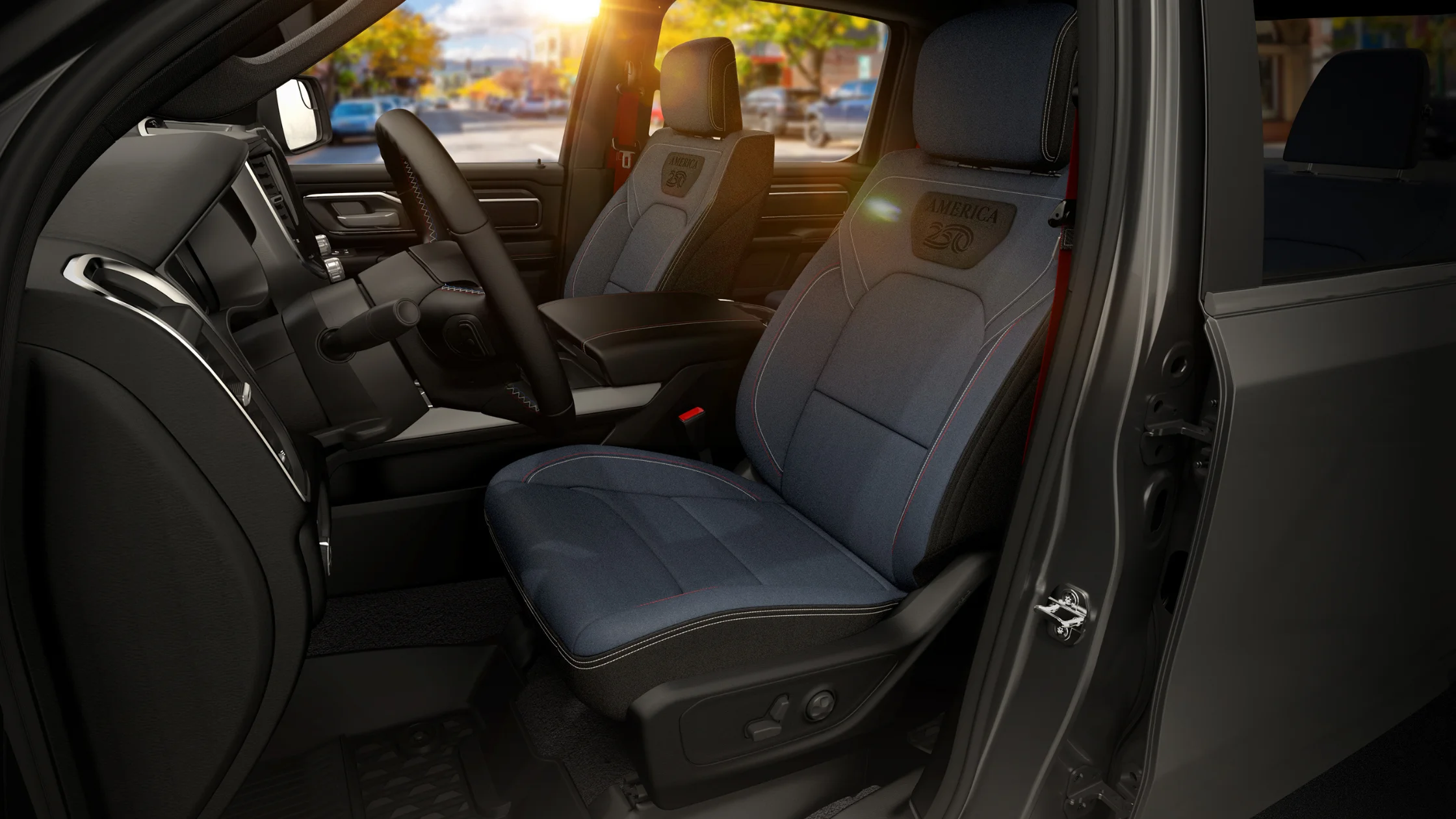

Interior configurations support seating for up to six occupants. Front headroom measures 40.9 inches, with identical front legroom. Shoulder room is 66 inches, and hip room measures 63.4 inches. Seat travel extends 8.7 inches with a recliner range of 71 degrees.

Rear seating dimensions vary by cab type. Quad Cab models provide 35.3 inches of rear legroom, while Crew Cab models increase rear legroom to 44.8 inches. Rear headroom measures up to 39.9 inches, supporting passenger comfort in extended configurations.

Electrical Systems and Integrated Architecture

The vehicle uses the Atlantis electrical architecture, which supports advanced system integration and power management. Alternator capacity reaches up to 240 amps in turbocharged configurations, providing sufficient output for onboard systems and accessories.

Battery configuration includes a maintenance-free unit rated at 730 cold cranking amps. Mild hybrid systems in select engines integrate electrical components with mechanical systems to improve efficiency and torque delivery during acceleration.

Safety Systems and Structural Integrity

The 2026 Ram 1500 includes a six-airbag system across both Quad Cab and Crew Cab models. Structural integrity is maintained through the ladder-type frame and reinforced body construction. Anti-lock braking systems and electronic stability features support controlled vehicle operation during braking and cornering.

Brake rotor sizing and caliper design contribute to consistent stopping performance, particularly under load conditions. The suspension geometry further supports vehicle stability by maintaining tire contact with the road surface.
