2026 Jeep® Grand Cherokee in Mobile, AL

The 2026 Jeep® Grand Cherokee is a four-door sport-utility vehicle built on a steel uniframe platform with a front-engine configuration and available rear-wheel drive or four-wheel drive systems. The vehicle is assembled at the Detroit Assembly Complex, with production taking place at both the Mack Plant and Jefferson North Plant in Michigan. It is classified as a multipurpose vehicle and continues to follow the structural and mechanical framework introduced in the current generation.

The design integrates a rigid body structure with balanced weight distribution and a focus on measurable outputs such as horsepower, torque, towing capacity, and dimensional efficiency. The engineering approach emphasizes durability, drivetrain flexibility, and consistent handling across varied driving conditions. All specifications are measured at curb weight with standard tires and wheels, ensuring uniformity in performance data.

Engine Configurations and Mechanical Output

The 2026 Jeep® Grand Cherokee provides two primary engine configurations, each designed to meet distinct performance requirements. The standard engine is a 3.6-liter Pentastar® V6 with a displacement of 3,604 cubic centimeters. This engine uses a 60-degree V-type layout and features a liquid-cooled system with aluminum construction for both the block and cylinder heads. It operates with a chain-driven dual overhead camshaft system and includes 24 valves with hydraulic end-pivot roller rockers.

This V6 engine produces 293 horsepower at 6,400 revolutions per minute and generates 260 pound-feet of torque at 4,000 revolutions per minute. The compression ratio is set at 11.3:1, supporting efficient combustion using regular unleaded fuel with an 87 octane rating. The engine reaches a maximum speed of 6,700 revolutions per minute with electronic limitation. Oil capacity is rated at 5.0 quarts, and coolant capacity measures 14.0 quarts.

The second available engine is a 2.0-liter Hurricane turbocharged inline-four unit. This engine has a displacement of 1,995 cubic centimeters and incorporates both direct and port fuel injection systems. It features a deep-skirt cast-aluminum block with cross-bolted steel main bearing caps, along with low-friction plasma spray-bore coated cylinders to reduce internal friction. The crankshaft and connecting rods are forged steel, while the pistons are constructed from cast aluminum alloy with diamond-like carbon-coated pins.

This turbocharged engine produces 324 horsepower at 6,000 revolutions per minute and delivers 332 pound-feet of torque between 3,000 and 4,500 revolutions per minute. The compression ratio is 12:1, and the engine operates with a maximum speed of 6,500 revolutions per minute. Oil capacity is 5.0 quarts, and the cooling system includes both engine and intercooler capacities totaling 14 quarts. Both engine options support a maximum gross trailer weight of 6,200 pounds.

Transmission Systems and Gear Ratios

The 2026 Jeep® Grand Cherokee is equipped with eight-speed automatic transmissions designed for controlled power delivery and fuel efficiency. The TorqueFlite 8HP70 transmission is paired with the V6 engine and includes driver-interactive manual control along with an electronically modulated torque converter clutch.

Gear ratios for this transmission include a 4.71 first gear and progressively step down to a 0.67 eighth gear, allowing for strong initial acceleration and reduced engine load during highway operation. Reverse gear is set at 3.30.

The TorqueFlite 880RE or 8HP80 transmission is available with the turbocharged engine configuration. This system includes similar electronic modulation and manual control features. Its gear ratios begin with a 5.50 first gear and extend to a 0.64 eighth gear. Reverse gear is rated at 4.54. These ratios are calibrated to maximize torque utilization and maintain efficient power transfer across different speeds.

Drivetrain Systems and Transfer Case Functionality

The drivetrain configuration supports both rear-wheel drive and four-wheel drive systems. For four-wheel drive applications, the 2026 Jeep® Grand Cherokee offers two transfer case options. The MP3015C is a single-speed electronically shifted transfer case that provides full-time active four-wheel drive with a variable torque split between the front and rear axles.

The MP3028C transfer case introduces a two-speed system with a low-range ratio of 2.72. This configuration includes selectable operating modes such as 4x4 Low and Neutral, providing additional control in low-speed driving conditions. Torque distribution remains variable, allowing the system to adjust based on traction requirements.

Front and rear axles use a conventional differential setup, with the rear axle offering an optional electronic limited-slip differential. The axle ratio is set at 3.45:1 for both front and rear configurations. These components work together to maintain traction and stability across different driving surfaces.

Suspension Architecture and Steering Dynamics

The suspension system of the 2026 Jeep® Grand Cherokee is fully independent at both the front and rear. The front suspension uses a multi-link design with coil springs and gas-charged twin-tube coilover shock absorbers. Aluminum components are used for the arms and knuckles to reduce unsprung weight and improve handling response.

The rear suspension also features a multi-link configuration with coil springs and twin-tube shock absorbers. It includes load-leveling functionality, which supports vehicle stability when towing or carrying additional cargo. Aluminum construction is used in rear suspension components to maintain structural efficiency.

Steering is managed through an electric rack-and-pinion system. The overall steering ratio is 16.9:1 for rear-wheel drive models and 15.6:1 for four-wheel drive configurations. The turning diameter measures approximately 38 feet curb-to-curb, and steering requires between 2.9 and 3.0 turns lock-to-lock, depending on drivetrain configuration.

Braking Systems and Stability Controls

The braking system incorporates electric boost technology and is standard across all models. The front brakes use vented disc rotors measuring 13.94 inches in diameter and 1.10 inches in thickness, paired with two-piston pin-slider calipers. The rear brakes feature vented disc rotors measuring 13.78 inches in diameter and 0.87 inches in thickness, with single-piston pin-slider calipers and an electronic parking brake system.

The vehicle includes a drum-in-hat parking brake design. Stability and control systems are integrated into the braking architecture, including four-wheel anti-lock braking, electronic stability control, all-speed traction control, and brake assist. These systems monitor wheel speed and vehicle dynamics to maintain control during braking and acceleration.

Exterior Dimensions and Structural Measurements

The 2026 Jeep® Grand Cherokee is built with precise dimensional specifications that support both interior space and exterior maneuverability. The wheelbase measures 116.7 inches, contributing to balanced weight distribution and ride stability. The overall length is 193.5 inches, while the width reaches 84.6 inches when measured at the mirrors and 77.5 inches with mirrors folded.

The vehicle height is 70.8 inches with standard suspension and increases slightly to 70.9 inches with air suspension. Ground clearance varies depending on suspension configuration, measuring 8.4 inches with standard suspension and up to 10.9 inches with air suspension in its raised position.

Approach angles reach up to 30.1 degrees with air suspension, while departure angles measure 26.6 degrees with standard suspension. The ramp breakover angle is rated at 19.1 degrees for standard suspension and increases to 24 degrees with air suspension. These measurements support off-road capability and obstacle clearance.

The drag coefficient is rated at 0.357, with a frontal area of 31.7 square feet, resulting in a combined aerodynamic efficiency measurement of 11.3.

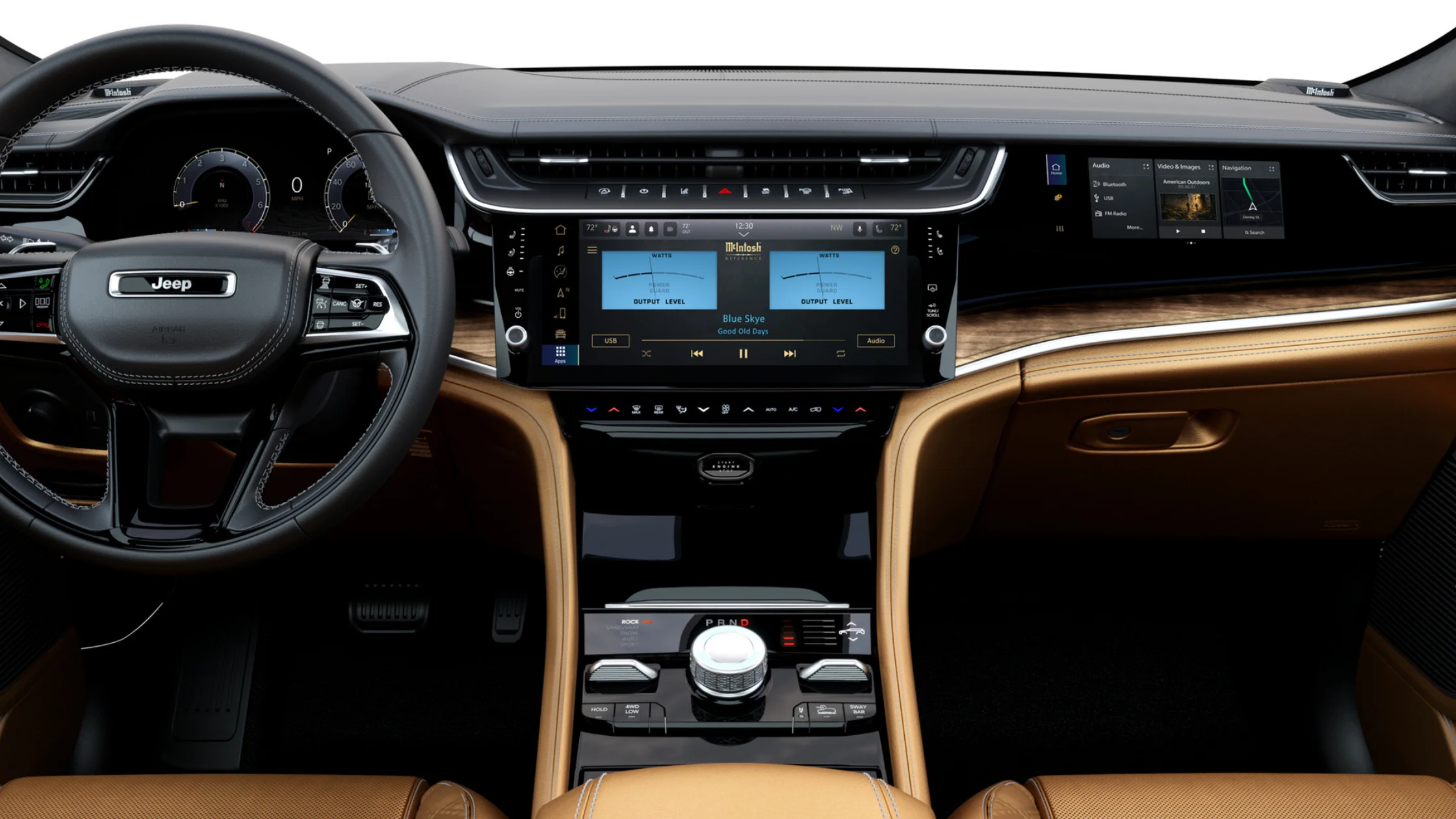

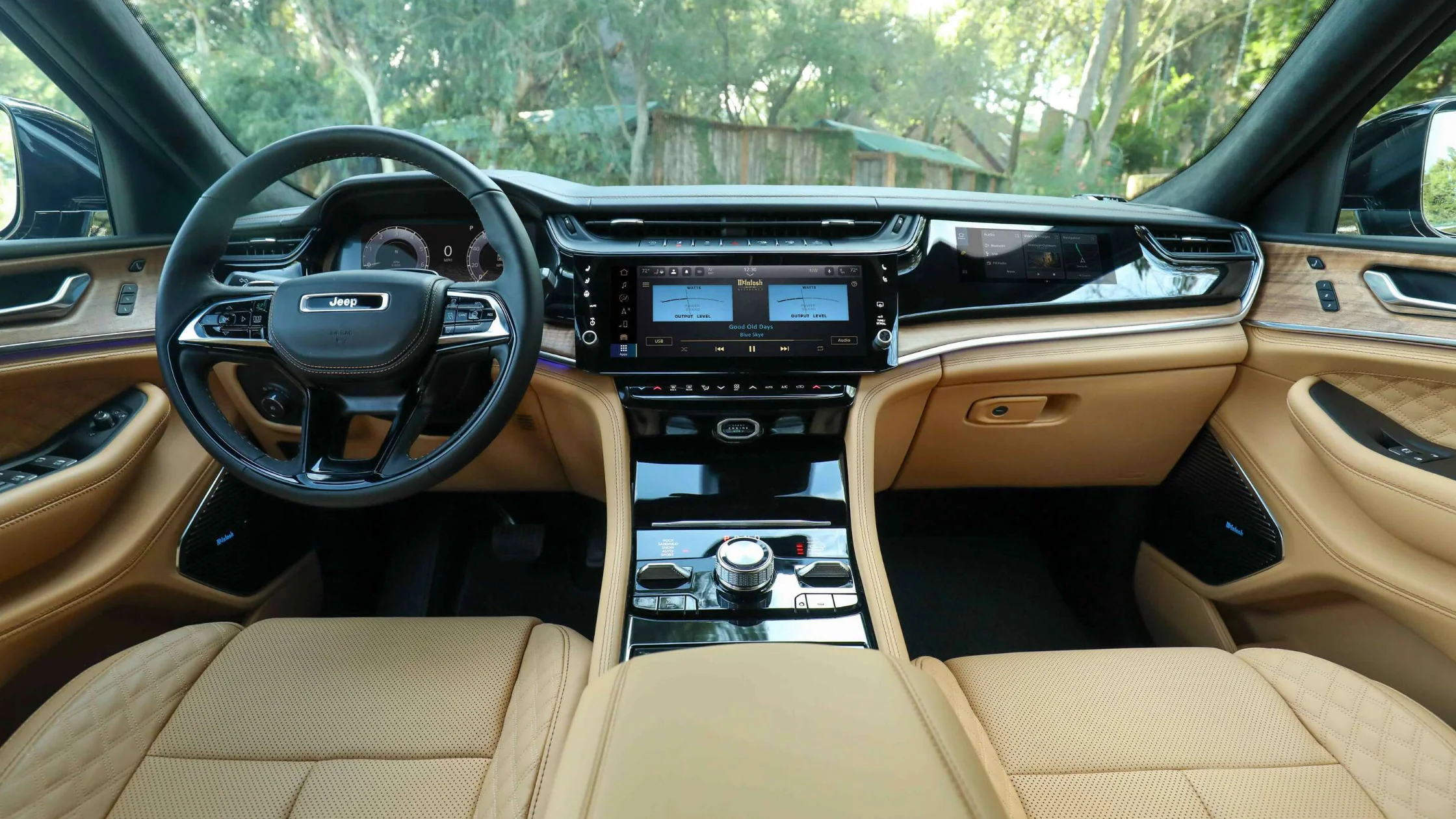

Interior Space and Passenger Accommodations

The interior of the 2026 Jeep® Grand Cherokee is configured to accommodate five passengers with a total passenger volume of 144.6 cubic feet. The front row provides 39.9 inches of headroom and 41.3 inches of legroom, along with 59.2 inches of shoulder room and 57.4 inches of hip room. Seat travel for the front row measures 9.8 inches.

The second row offers 39.4 inches of headroom and 38.2 inches of legroom. Knee clearance measures 4.1 inches, while shoulder room is 58.0 inches and hip room is 56.3 inches. These dimensions ensure consistent space allocation across both seating rows.

Cargo capacity measures 37.7 cubic feet behind the second row. When the rear seats are folded, cargo volume increases to 70.8 cubic feet. The load floor height varies based on suspension configuration, measuring 32.4 inches with standard suspension and 30.4 inches with air suspension in entry or exit mode.

Wheels, Tires, and Ground Contact Specifications

Wheel options for the 2026 Jeep® Grand Cherokee vary by trim level, beginning with 17-inch cast aluminum wheels and extending to available 21-inch configurations. Wheel widths range from 8 inches to 9 inches depending on the selected setup.

Tire configurations include 245/70 R17, 265/60 R18, and 265/50 R20 options, along with an available 275/45 R21 configuration. These tire sizes are selected to balance traction, durability, and ride comfort across different driving conditions. Tire models include all-season variants designed for consistent performance across varying temperatures and road surfaces.

Electrical System and Supporting Components

The electrical system is designed to support the vehicle's operational and auxiliary functions. Alternator output ranges from 160 amps to 240 amps depending on the model configuration. Battery systems include maintenance-free units with cold cranking capacities ranging from 650 to 700 cold cranking amps.

Vehicles equipped with engine stop-start systems include an auxiliary battery rated at 200 cold cranking amps. These components ensure consistent electrical performance and support the demands of onboard systems.
